6KA 10kA Laiti Lisi Va'ava'a

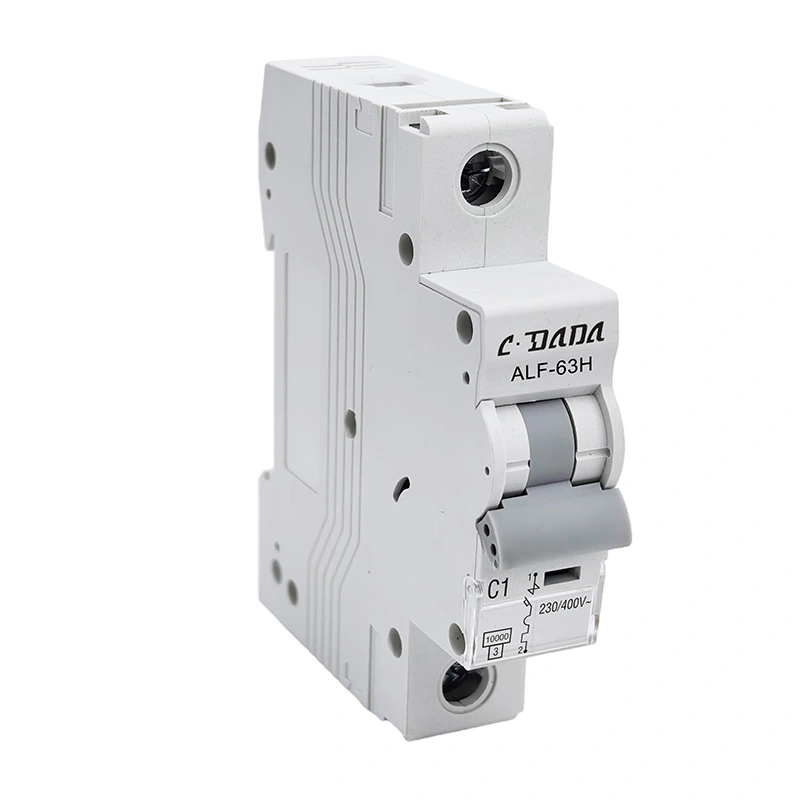

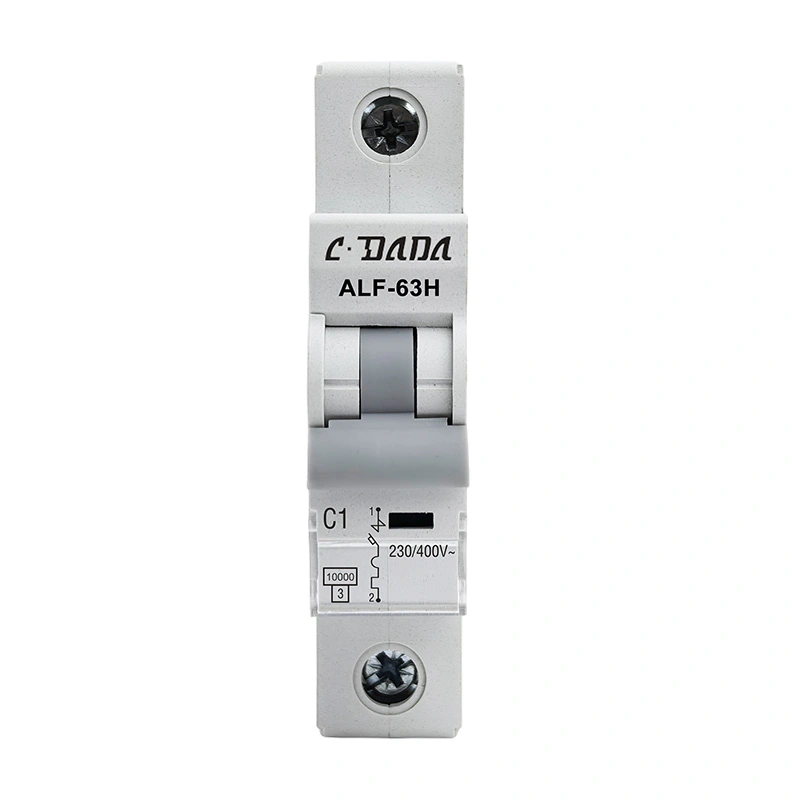

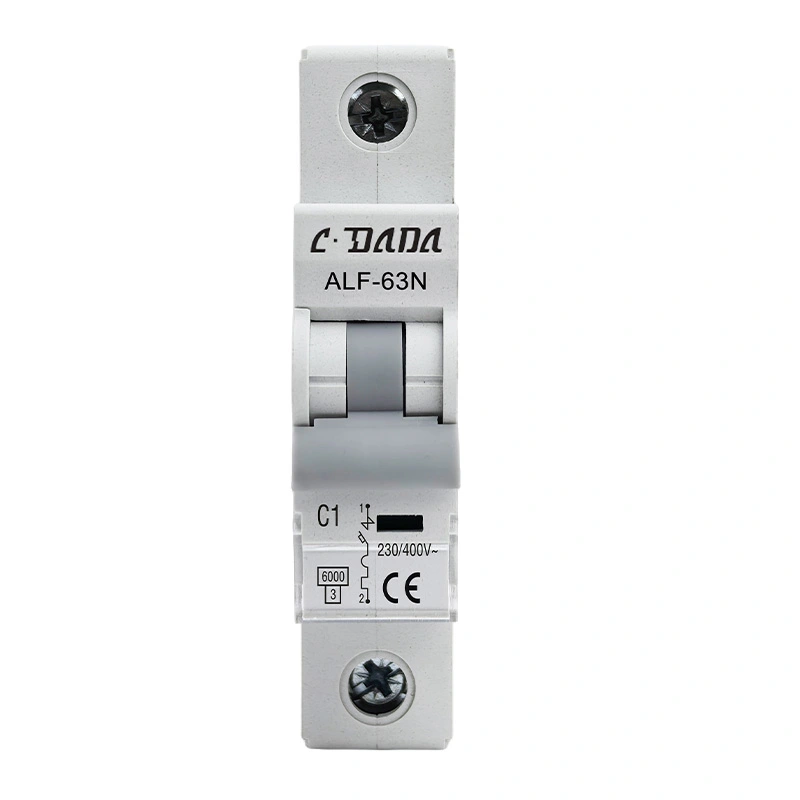

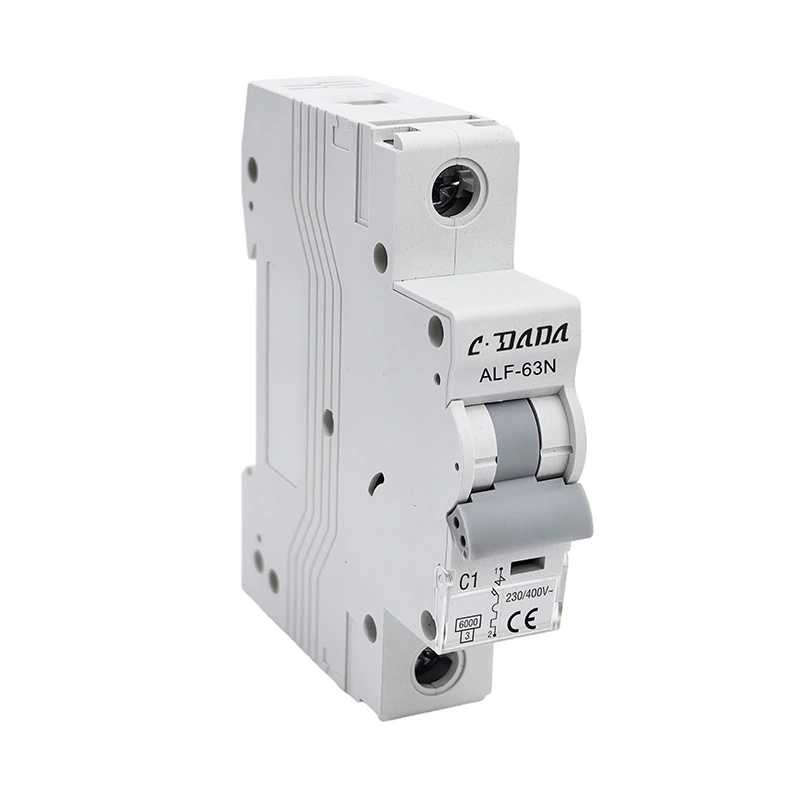

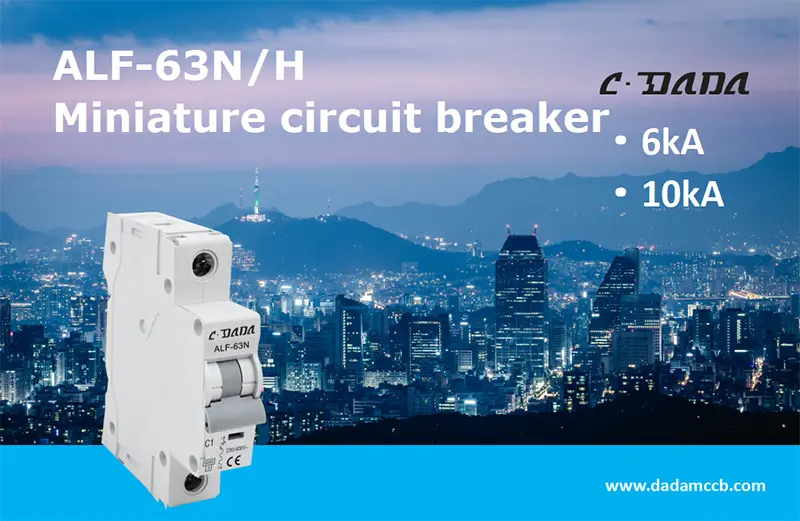

ALF-63N/H fa'asologa maualuga gau 6KA 10kA Miniature Circuit Breaker (MCB), e tusa ai ma le tulaga IEC60898, MCB ei ai le uiga o le fa'atuatuaina fa'atinoga, sa'o le puipuiga, taimi fa'asa'olotoga, ma le maualuga o le gau, la'ititi fo'i. E faʻaaogaina lautele i totonu ma le tele o fesoʻotaʻiga, switchgear, ma mea eletise.

Faʻafesoʻotaʻi CDADA ma filifili i matou e fai ma au gaosiga, e mafai ona matou ofoina atu auaunaga OEM / ODM.

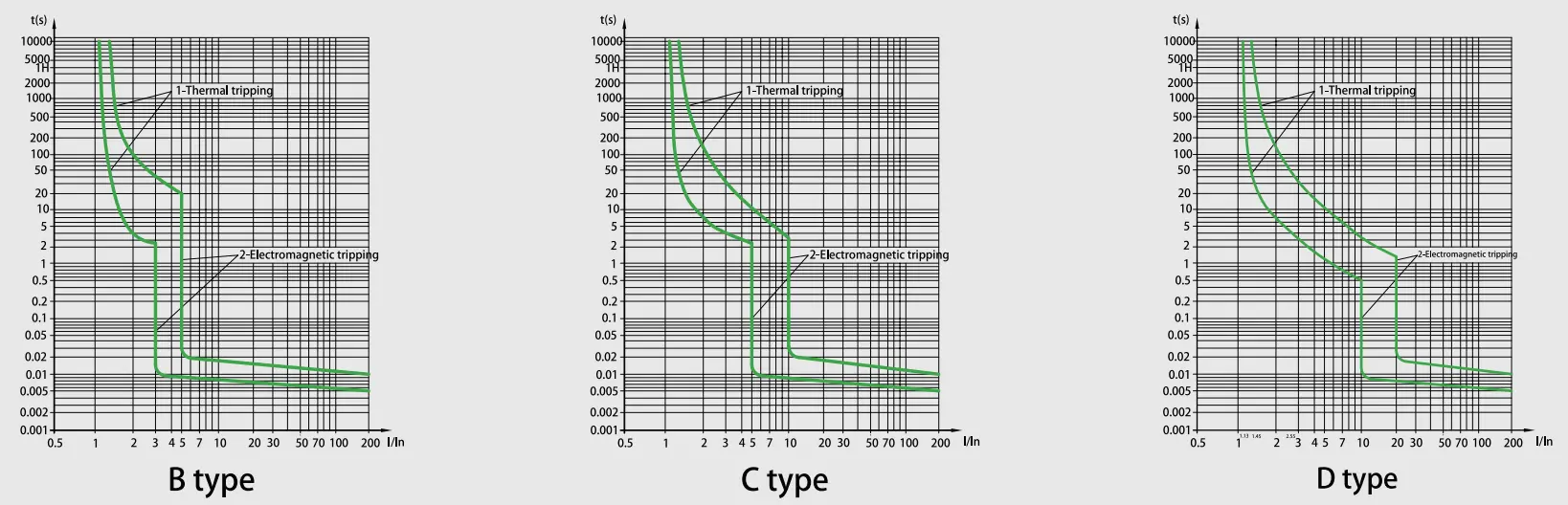

Pi'o uiga

Fa'amatalaga Fa'apitoa

ALF-63N/H Fa'asologa 6KA 10kA Laiti Va'ava'ava'a
Tulaga	EN/IEC60898-1
Gagana gau(kA)	6,10
Puipuiga	Faʻasaga i le mamafa ma le taʻavale puʻupuʻu
Fa'atatau ile taimi nei(A)I	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Fuafuaina voltage(V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Uimp(kV) fua fa'atatauina	4
Ui(V) fua fa'atatau	500
Malosi fa'atapula'a cass	3
O le vevela o le siosiomaga(℃)	-25~+40,Max.95%sūsū
Tapula'a fa'agaioiga vevela	1.13xln Leai se pa'u i totonu ole itula
	1.45xI Ta'avale i totonu ole itula
Fa'agaioiina maneta	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Numera o pou	1P,1P+N,2P,3P,3P+N ma le 4P
Ituaiga o malaga	Fa'asao fa'amaneta/maneta
Malosiaga fa'amau	16mm² fetuutuunai pe 25mm² malo e oo atu i le 25A fua faatatau
	25mm²faigofie pe 35mm²malosi mai le 32A i le 63A fa'atatau
Faailoga puipuiga	IP20

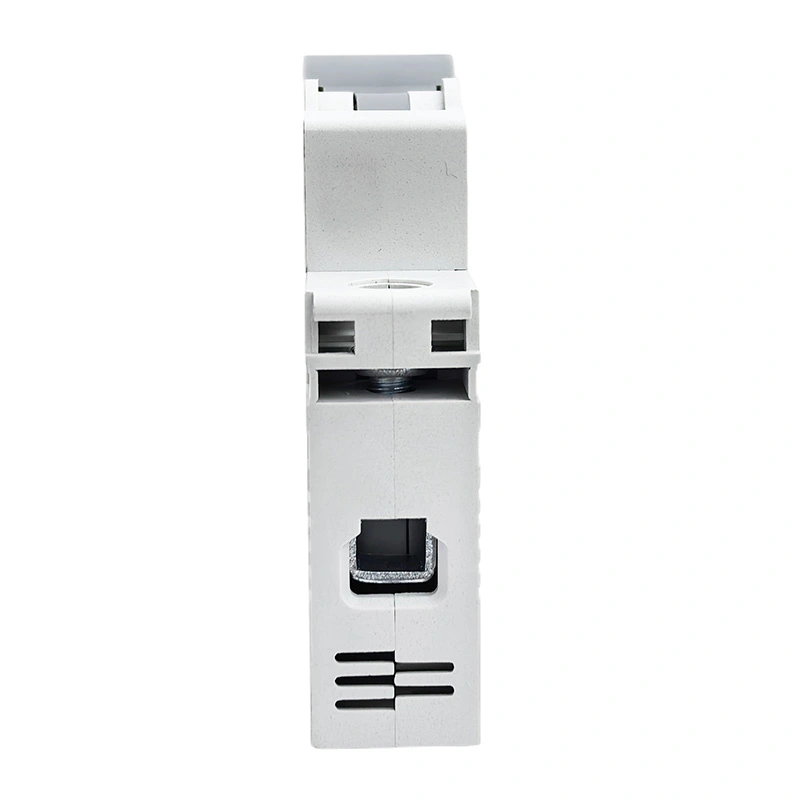

Fa'apipi'i	Faʻapipiʻi i luga ole 35mm DIN rail

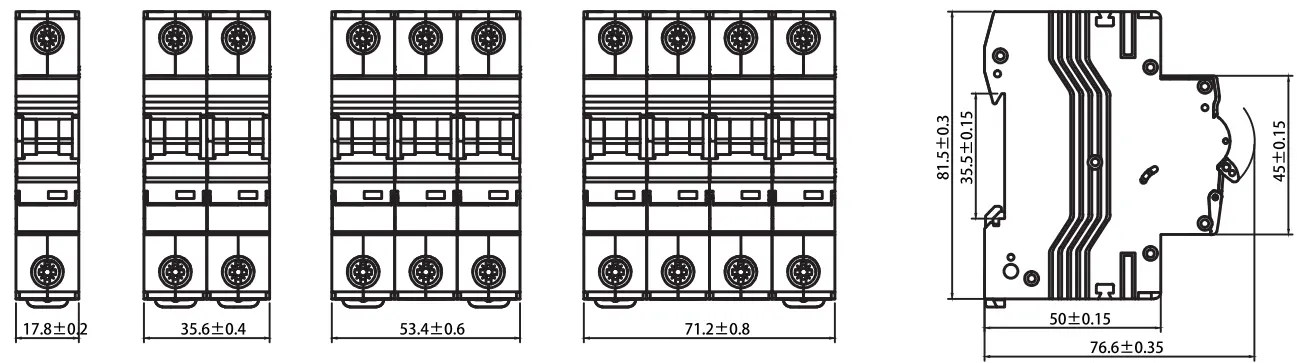

Lautele	17.8mm i le pou

Uiga fa'asa'olotoga va'a

LEAI.	Fa'atatau i le taimi nei o le fa'amalolo(A)	Tulaga muamua	Su'ega i le taimi nei	Taimi fa'apitoa	Fa'ai'uga e maua	Fa'amatalaga
1	1-63	tulaga malulu	1.13I	t≤1h	Le malaga
2	1-63	i luga o le suega muamua	1.45ln	t<1h	malaga	Fa'atulaga le taimi nei i le tau fa'amaonia i le 5s
3	I≤32	tulaga malulu	2.55I	1s	malaga
	I>32
4	1-63	tulaga malulu	3I totonu	t≤0.1s	Le malaga	B ituaiga
			5I totonu	t<0.1s	malaga	B ituaiga
			5I le 10ln	t≤0.1s	Le malaga	C ituaiga
			10I	t<0.1s	malaga	C ituaiga
			20ln	t≤0.1s	Le malaga	D ituaiga
				t<0.1s	malaga	D ituaiga

Tumau(Galue)

Vaega	Ta'amilosaga o Galuega	Fa'agaoioi taimi	Fa'atatau i le taimi nei
Malosi eletise	4000	240/h	1-32
		120/h	40-63
Onosa'i fa'ainisinia	10000	240/h	1-63

Vaega

★ Malosi-Mata'i-maualuga Pu'upu'u-Fa'asa'o Ta'atiaga

Fa'atekonolosi fa'atonutonu arc e maua ai le malosi fa'alavelave maualuga pe a fa'atusatusa i tulaga tau alamanuia, fa'amautinoaina le puipuiga fa'atuatuaina mo faiga fa'aeletise tulaga fa'apisinisi i lalo o tulaga ogaoga fa'aletonu.

★ Faiga Feso'ota'iga Fa'alua-Mode

Tu'ufa'atasi tu'ufa'atasiga fa'apipi'i fa'amaufa'ailoga e lagolagoina uma fa'amauga pasi ma fa'apipi'i uaea fe'avea'i, fa'aagaaga ai le fa'aogaina o meafaigaluega e leai se mea faigaluega i fa'asologa fa'apipi'i eseese a'o fa'aitiitia le taimi o uaea i le 40%.

★ Malosiaga-Teuga Mechanism mo le Umi

Faiga fa'aoga e fesoasoani i le tautotogo ma le 10,000 ta'amilosaga fa'ainisinia tumau, fa'aalia ai tekinolosi fa'aofuofu-taui.

★ Avanoa Fa'atasiga Maualuga

fa'atasi ai ma mea e fa'aluma ai ta'uta'ua, e tete'e i le vevela, ma mea e fa'aoso fa'amalosi ua tu'ufa'atasia potu tineia arc mo fa'alavelave fa'aletonu.

★ Dynamic Current-Limiting Topology

O le taofiofia o le malosi e faʻaitiitia ai le maualuga o faʻaletonu i le 65-80%, faʻataga ai le faʻaogaina o faʻamatalaga o masini i lalo ma le 30% o le faʻaititia o tau o le polokalama.

Otootoga fua

Fa'atinoga Fa'atusa

★ Nofo: Unite fa'atau ma laupapa tufatufaina mo le saogalemu ile fale.

★ Alamanuia: Puipuiga o mea fa'afeso'ota'i, mea fa'aoga, ma masini eletise mamafa.

★ Fefa'ataua'iga: Fale ofisa ma faleoloa e mana'omia ai le fa'atuatuaina maualuga.

Puleaina lelei & Su'ega Tulaga

★ O CDADA MCB uma e faia su'ega faigata ina ia mautinoa le tausisia o le IEC60898-1:

★ Thermal Tripping Suʻega: Faʻamaonia ile 1.13In (le-malaga) ma le 1.45In (malaga i totonu ole 1 itula).

★ Su'ega Fa'asa'o Fa'amaneta: Su'ega tu'u sa'o mo uiga B, C, ma D.

★ Eletise Endurance: Faʻataʻitaʻiina mo le 4,000 taʻamilosaga taʻavale.

★ Malosi Fa'ainisinia: Fa'amaonia mo le 10,000 ta'amilosaga.

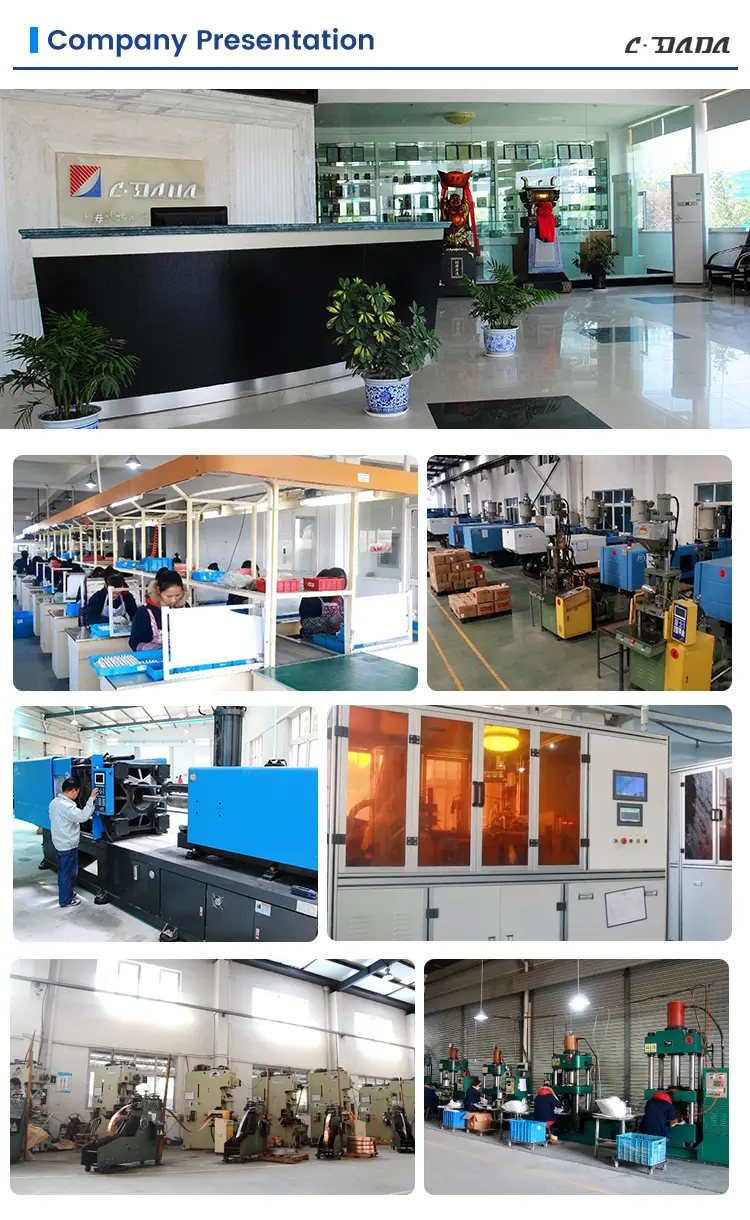

Malosiaga Falegaosi & Lagolago

Shanghai DADA Electric Co., Ltd. o se ta'uta'ua ta'uta'ua fa'atasi ai ma laina gaosiga fa'apitoa ma se au fa'ainisinia fa'apolofesa. Matou te tuuina atu:

★ Au'aunaga OEM/ODM fa'apitoa mo fa'ailoga o le lalolagi.

★ Su'ega fa'aonaponei fa'aonaponei e fa'amautinoa ai le tu'uina atu e leai se fa'aletonu.

★ Global Logistics Support: Fa'apipi'i lelei mo uta i le sami ma le ea ina ia mautinoa e taunuu lelei oloa.
