Tu'aiga Fa'aeletonika Fa'ata'ita'i Tulaga Va'ava'a

Mo faiga eletise fa'aonaponei e mana'omia ai le sa'o, atamai, ma le fa'amaoni, le Electronic Type Molded Case Circuit Breaker e Shanghai DADA Electric CO., LTD. fa'atuina se tulaga fou i le puipuiga maualalo-voltage. E le pei o fa'amaneta fa'amaneta masani, o lenei MCCB atamai e fa'aogaina se masini fa'aeletoroni fa'aeletonika fa'avae e tu'uina atu ai le sa'o atoatoa, fa'apolokalameina o le puipuiga o le so'o-fa'aletonu i suiga o le vevela.

Faʻatasi ai ma faʻatulagaga fetuutuunai mai le 40% i le 100% In (thermal) ma le 1.5 × i le 12 × In (magnetic), e ofoina atu le fetuutuunai e le mafaatusalia mo le faʻamaopoopoina faʻalavelave i nofoaga autu o faʻamatalaga, fale gaosi oloa, falemaʻi, ma faʻafouina malosiaga faʻafouina. Fa'atauaina mai le 100A i le 1600A i le 400V/415V, e tu'ufa'atasia le mamanu fa'apitoa ma galuega fa'atino-ma e aofia ai le le-saogalemu-malaga tu'usa'o i taimi ogaoga fa'aletonu, tusa lava pe fa'aletonu mea tau eletise.

Fa'amatalaga autu

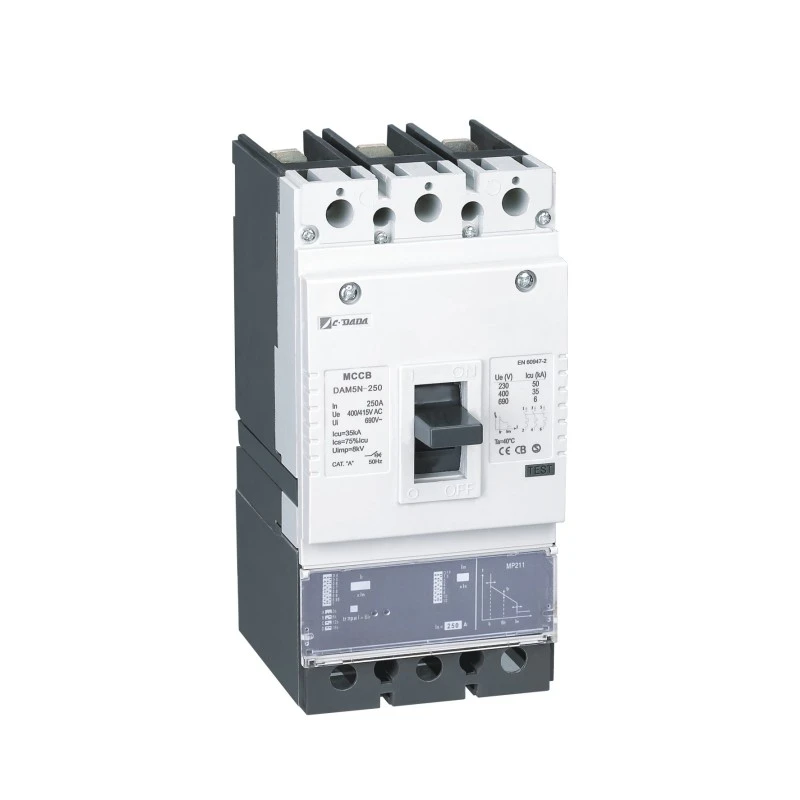

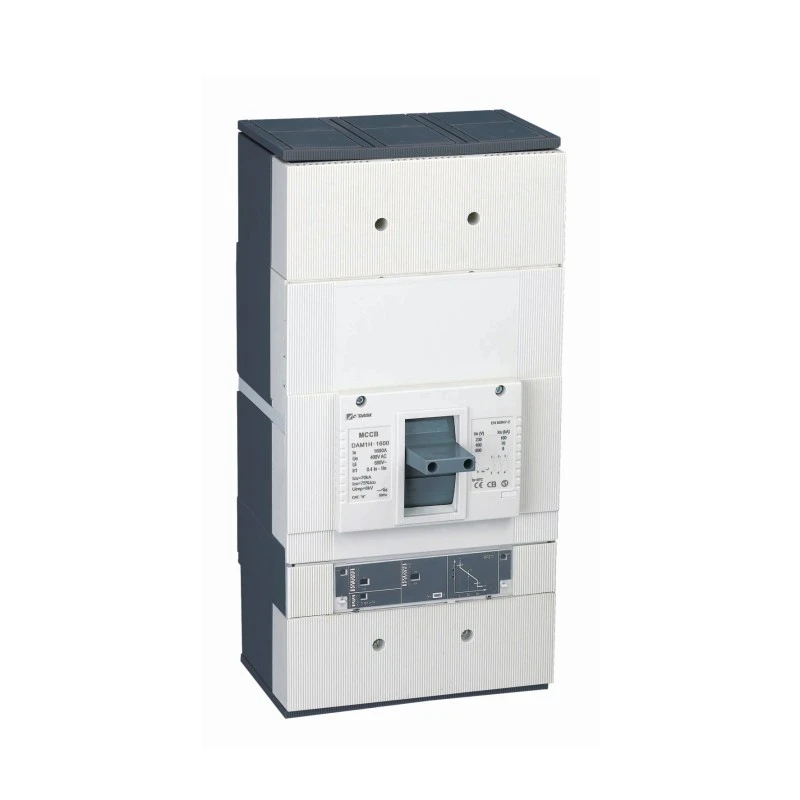

Fa'ata'ita'iga: CDADA DAM2 / DE Fa'asologa (Tuaiga Fa'aeletonika Fa'ata'ita'iga Va'ava'a)

Ituaiga: Fa'aeletonika Fa'ata'ita'i Fa'ata'ita'iga Va'ava'a

Pou: 3P / 4P

Fua Fa'atatau (Ue): 400V / 415V AC

Fa'atatau i le taimi nei (I totonu): 100A - 1600A

Vaega o Malaga: Fa'asalalauga fa'aeletonika fa'avae Microprocessor

Fetuunaiga vevela (Ir): 40% - 100% o In

Fetuunaiga maneta (Im): 1.5× – 12× In

Tulaga lelei

★ Aoao lautele:100A i le 1600A(AC)

★ Fua fa'atasi

★ Fetuuna'i fa'avevela (40-100%) I.

★ Fa'atonu maneta (1.5-12times) I totonu.

★ Tu'i i le malaga fa'amau tu'uaga.

★ Vaevae feso'ota'iga autu ma feso'ota'iga

★ Tele ituaiga o mea fa'aoga.

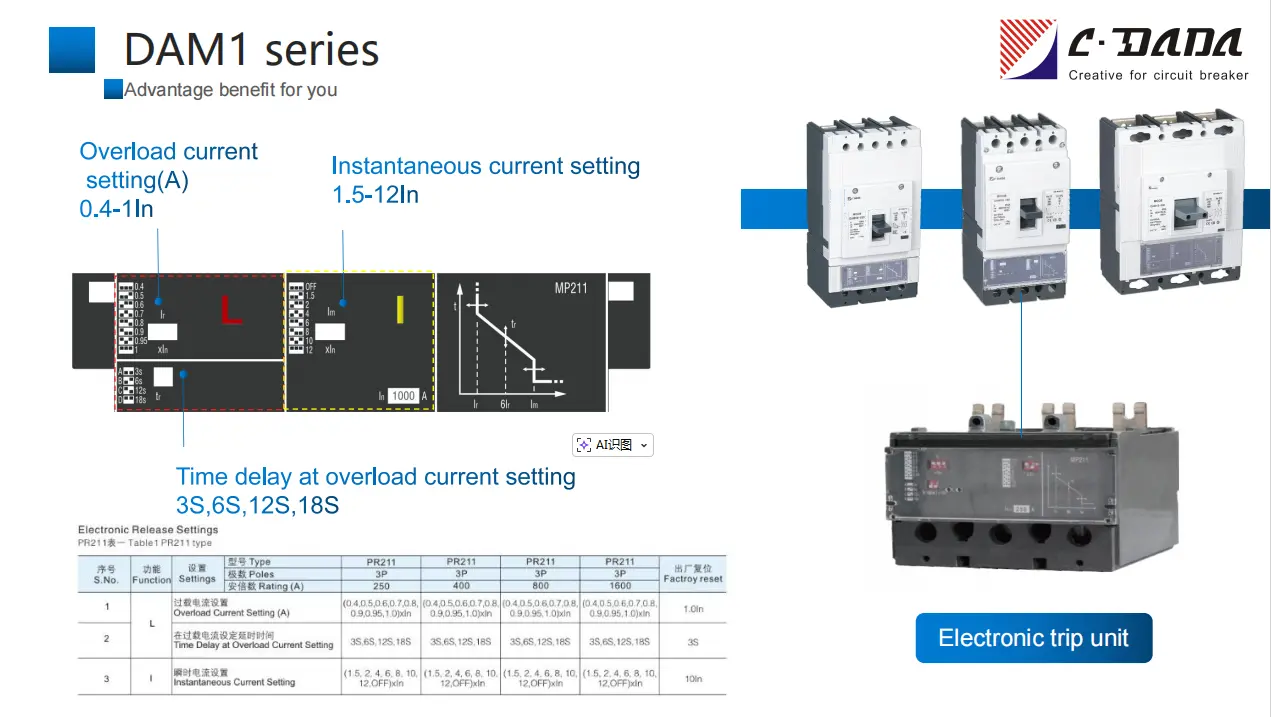

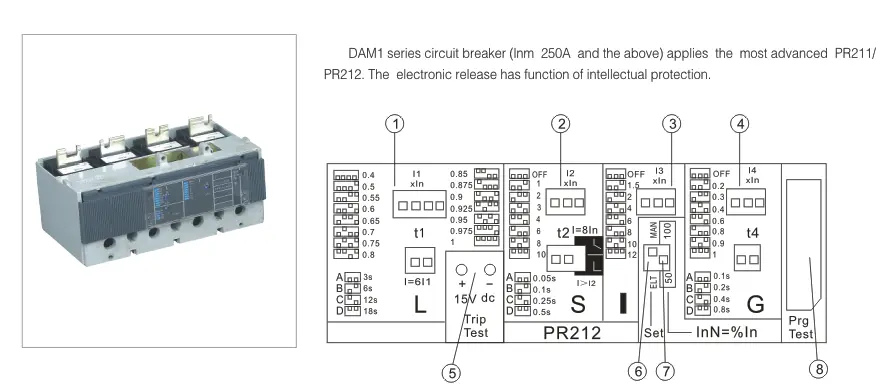

Pipi uiga fa'aeletonika tu'u

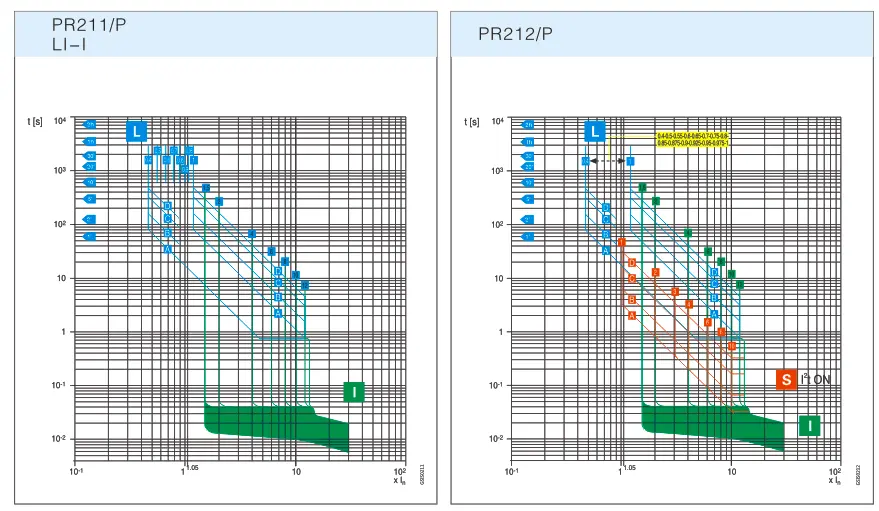

Fa'ailoga eletise

Laulau 1 PR211 ituaiga

S.Leai.

Galuega

Fa'atonu

Ituaiga

PR211

PR211

PR211

PR211

Toe setiina Factroy

Poutū

3P

3P

3P

3P

Fa'ailoga (A)

250

400

800

1600

1

L

Ova le uta Fa'asaga i le taimi nei (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0I totonu

2

Fa'atuai Taimi ile Ova Ovata Fa'atonu Fa'atonu

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Fa'atonu Fa'atonu Fa'atonu

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

10I

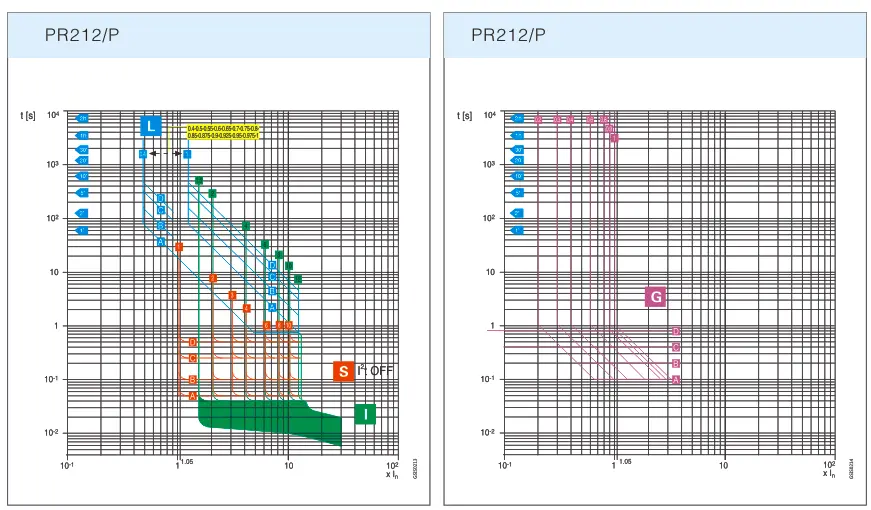

Laulau 2 ituaiga PR212

S.Leai.

Galuega

Fa'atonu

Ituaiga

PR212

PR212

PR212

PR212

Toe setiina Factroy

Poutū

3P

3P

3P

3P

Fa'ailoga (A)

250

400/630

800

1600

1

L

Ova le uta Fa'asaga i le taimi nei (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xI totonu

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xI totonu

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xI totonu

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xI totonu

1.0I totonu

2

Fa'atuai Taimi ile Ova Ovata Fa'atonu Fa'atonu

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Puupuu - Fa'atonuga o le taimi nei (A)

(1, 2, 3, 4, 6, 8, 10, OFF)xI totonu

(1, 2, 3, 4, 6, 8, 10, OFF)xI totonu

(1, 2, 3, 4, 6, 8, 10, OFF)xI totonu

(1, 2, 3, 4, 6, 8, 10, OFF)xI totonu

6I totonu

4

Fa'atuai Taimi i le Fa'atulagaina o le Taimi Puupuu

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Fa'atonu Fa'atonu Fa'atonu

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

10I

6

G

Fa'atonuga ole Eleele ile taimi nei (A)

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9，1.0, OFF)xIn

1.0I totonu

7

Fa'atuai Taimi ile Fa'atonuga ole Eleele

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

Filifiliga o le eletise poʻo le faʻaeletonika seti seti

SET Galuega (sui ELT/MAN)

9

Fa'aoga mo le fa'atulagaina o fa'amaufa'ailoga o le ki o le laina leai

InN=%In,sui 50/100

10

Socket mo so'oga e fua ai masini

So'o laupapa

Aisea e Filifilia ai le CDADA Electronic MCCB?

★ Atamai Moni, E le Na'o le Otometi
E fa'aauau pea ona su'esu'e e le microprocessor ia fa'agasologa o galu, e mafai ai ona sa'o le fa'afeagai-taimi, taimi-ma'oti, ma le puipuiga vave-e aunoa ma se tafetafea ona o le vevela po'o le matua.

★ Fail-Safe Design
E tusa lava pe le manuia le eletise eletise, o le lack electromagnetic tuusaʻo e faʻamautinoa ai le alu ese o le motusia i taimi o taʻaloga puʻupuʻu ogaoga - faʻafeiloaʻi IEC 60947-2 manaʻoga mo le saogalemu.

★ Faamaopoopo Sili
Ole tele ole fetuutuunaiga lautele (40–100% Ir, 1.5–12× Im) fa'ataga atoatoa le fa'amaopoopoina ma masini i luga/lalo-fa'aitiitia sone fa'aletonu.

★ Atina'e e Fa'amaonia i le Lumana'i
Fa'atasi ma fa'aoga feso'ota'iga fa'apitoa (Modbus RTU, Profibus) mo le tu'ufa'atasia i totonu o Faiga Fa'atonu Faufale (BMS) po'o fa'asologa atamai.

★ Tulaga Fa'avaomalo, Tau Fa'atauva
Gaosi i lalo ole ISO 9001 i Shanghai, fa'atasi ai ma fa'ailoga fa'ava-o-malo-o lo'o tu'uina atu ai le fa'atinoga o tulaga fa'a-Europa ile fa'atauga a Asia.

★ E i ai a matou 'au faʻapitoa o inisinia 15 e taulaʻi i le atinaʻeina o oloa, faʻaleleia, ma faʻasalalauga.

Talosaga Lelei

Nofoaga Autu o Fa'amaumauga: Taofi le fa'aoso fa'aletonu ma le sa'o sa'o o le pa'u

Falema'i: Fa'amautinoa le malosi e le motusia mo faiga e lagolago ai le ola

Alamanuia Automation: Faamaopoopo ma VFDs, vaivai amata, ma robotics

Fa'ato'aga a le Solar/Savili: Fetuuna'i i fa'amatalaga fa'atuputulaga fesuisuia'i

Fale Fefa'ataua'iga Atamai: Fa'agaoioi le mata'ituina o le malosi e aunoa ma ni mita fa'aopoopo

Fesili e Fai soo (FAQ)

Q1: O le a le mea e ese ai le MCCB fa'aeletoroni mai le fa'amaneta-maneta?

A1: E fa'aogaina e mea fa'atekonolosi Tu'aiga Fa'aeletonika se microprocessor e su'esu'e ai le taimi nei ma fa'aoso malaga ma le sa'o maualuga. E le afaina i latou i le vevela o le siosiomaga, ofo atu le tele o fetuutuunaiga laina, ma e mafai ona tuʻuina atu faʻamaumauga o uta-e le pei o le bimetal/solenoid-based thermal-magnetic type.

Q2: O le 1600A fa'aeletonika MCCB o lo'o maua ile 4-pole configuration?

A2: Ioe—o MCCB fa'aeletonika CDADA uma mai le 250A i le 1600A o lo'o maua uma i le 3P ma le 4P versions.

Q3: O le a le mea e tupu pe a le manuia le iunite malaga fa'aeletoroni i le taimi puupuu?

A3: O le va'a e aofia ai se fa'apolopolo fa'ainisinia: a'o fa'aoso fa'aletonu tele (>12×In), o le fa'amau fa'amaneta e fa'aoso sa'o ai le tatala-fa'amautinoa le saogalemu e o'o lava ile fa'aeletonika tuimotu.

Q4: E mafai ona ou mataʻituina tau faʻatatau i le taimi nei?

A4: Ioe-o le iunite malaga faaeletoroni e faʻaalia vave, max, min, ma averesi taimi i luga o faamalama taimi filifilia (eg, 24h), aoga mo le puleaina o le malosi.

Q5: Aisea e filifili ai le CDADA i luga o isi ituaiga MCCB atamai?

A5: CDADA ofo mai:

● moni fetuutuuna'i vaelua-lua (tele tauva fa'atapula'a Im i ≤10×)

● Fa'aletonu le fa'aogaina o masini (e le o MCCB uma "eletise" o lo'o iai lenei mea)

● Fa'atasi le lapopo'a—e fetaui ma paneli tuai e aunoa ma se suiga

● Malosi o tusipasi fa'alelalolagi (ASTA, KEMA, CE)

● OEM-friendly tau ma lagolago faʻapitoa i le Igilisi
