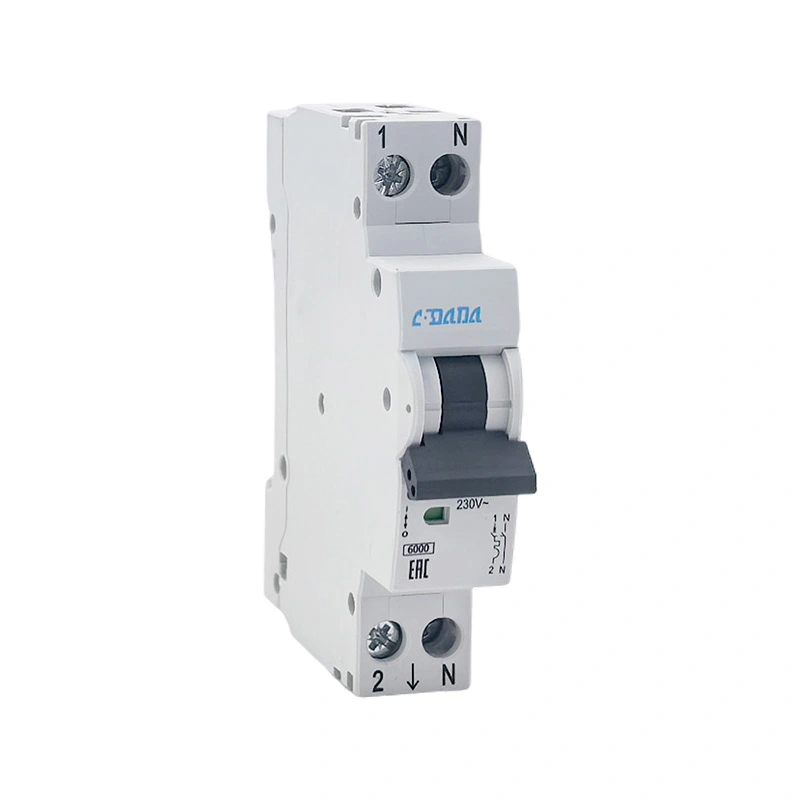

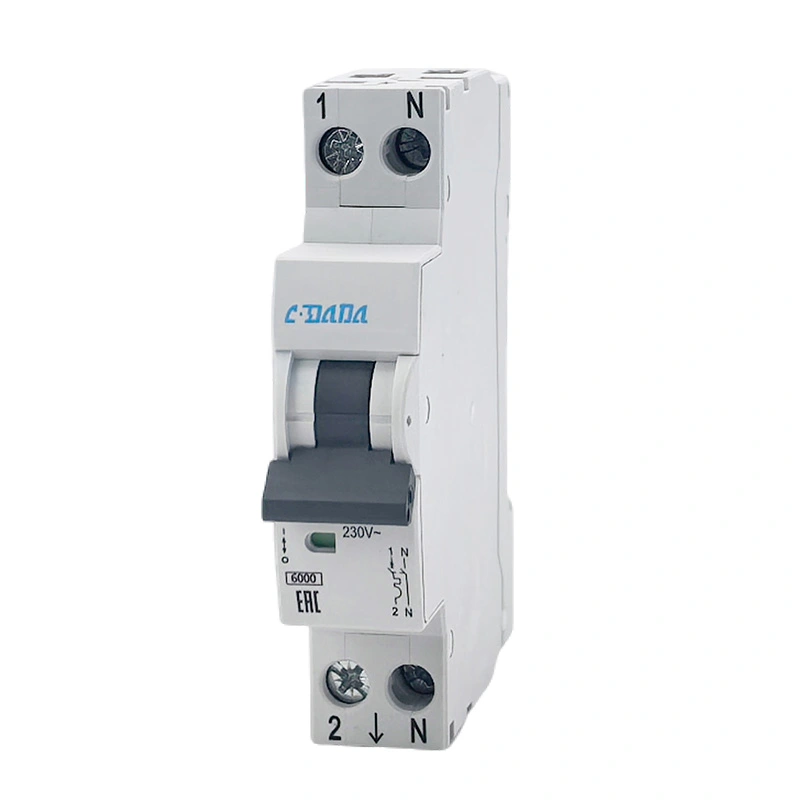

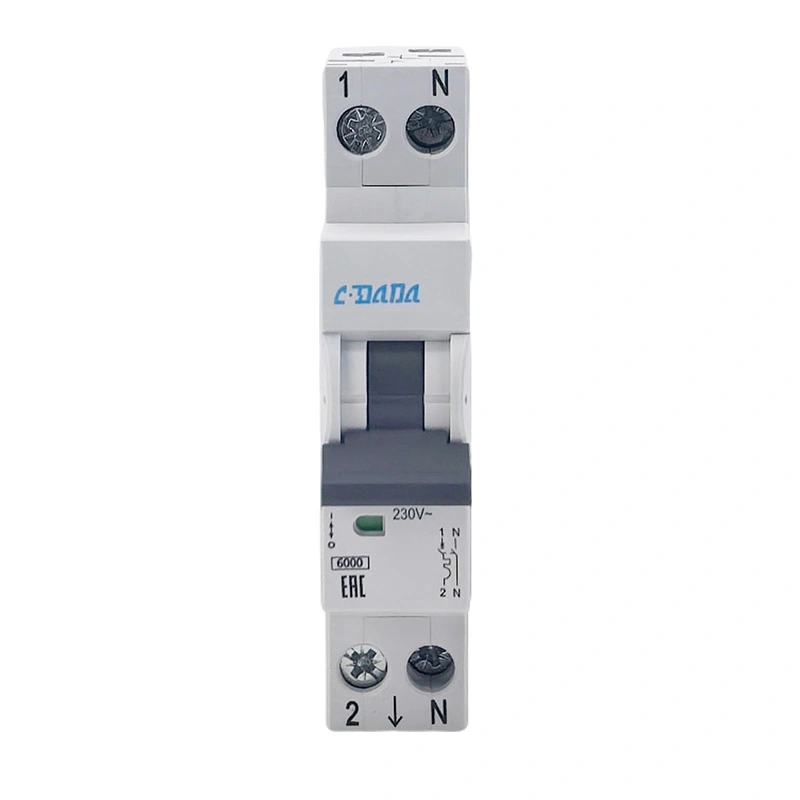

Laiti Va'ava'ava'ava'a DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA e lelei atoatoa mo le tele o fa'atauga, o le 1P+N la'ititi la'ititi la'ititi maualuga e fa'amalieina ma le IEC60898-1 mo le saogalemu o le aiga ma le fa'asalalauga fa'apisinisi. E fa'aogaina le fa'ailoga vaeluaga ma le fa'amautu fa'amaneta-maneta, faigofie ona fa'apipi'i i luga o le DIN rail ma faigofie ona tausia. E tu'ufa'atasia le fa'atuatuaina fa'atasi ma le umi o le tautua, fa'amautinoa le saogalemu o le sapalai o le eletise mo le tele o faiga eletise maualalo.
CDADA DAB7N Miniature Circuit Breaker DPN 6KA o se fa'apolofesa 1P + N lua-break miniature vaeluaga va'aia tuto'atasi e Shanghai DADA Eletise, o se gaosi faatuatuaina ma 40 + tausaga o le poto masani. Faʻatasi ai ma le 6kA maualuga le gau, faʻagaioiga faʻatasi, ma le N-pole "faʻamuamua, male mulimuli" mamanu, e faʻaleleia lelei le faʻaogaina o le arc ma puipuia ai taʻavale ma meafaigaluega ma le saogalemu. Faʻaaogaina lautele i pusa tufatufa, teuteuga o fale, malosiaga faʻatau, ma moli moli, o le filifiliga muamua lea mo tagata faʻatau i le lalolagi, tufatufa ma tagata faʻatau OEM.

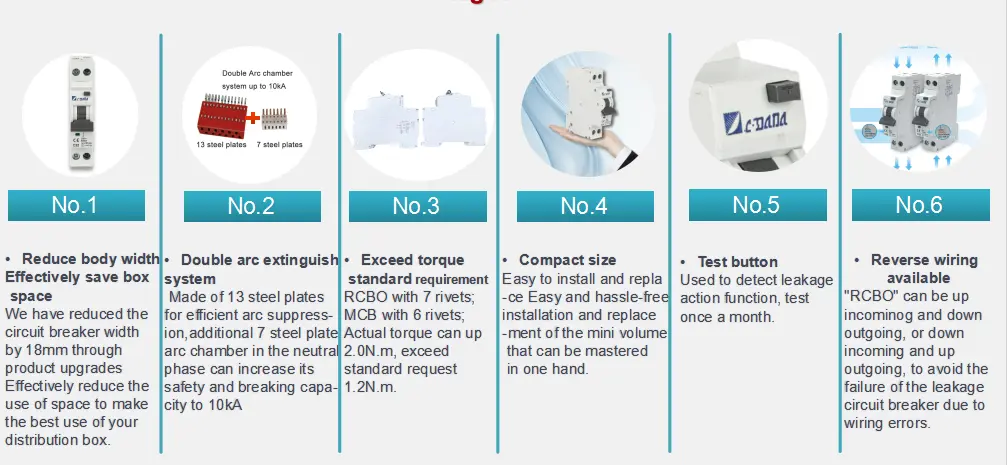

O a mea lelei ole MCB DPN 6KA?
★ 1P + N DPN fausaga, lua vaeluaga, saogalemu ma sili atu le faatuatuaina
★ N pou e faia muamua ae malepe mulimuli ane, faʻaleleia le malosi o le gau
★ 6kA mafai moni gau, malosi puʻupuʻu puipuiga
★ Compact 17.8mm lautele, sefe avanoa kapeneta
★ B/C tripping curves e avanoa mo uta eseese
★ IP20 puipuiga vasega, saogalemu e paʻi
★ Uaea lautele lautele: 1–25mm² uaea fetuutuunai
★ DIN rail mounting, faʻapipiʻi vave ma mautu
★ maualuga ma maualalo le vevela tetee: -25 ℃ ~ + 50 ℃
★ Umi le ola masini e oo atu i le 20,000 taimi
Talosaga
CDADA Miniature Circuit Breaker DPN 6KA e fa'aaogaina lautele i:
★ Fale nofoia, fale mautotogi, villas, teuteuga o fale
★ Ofisa, faleoloa, faletalimalo, aʻoga, falemaʻi
★ Lisi moli, sockets, masini eletise laiti
★ Meafaigaluega a le fale: faʻavevela vai, ea malulu, faʻavevela eletise
★ Toe fa'aleleia o le matagaluega tuai ma fa'aleleia pusa fa'asoa
★ Faiga fa'atauva'a fa'apisinisi ma fa'ale-malo e tu'uina atu eletise maualalo
Fuafuaga Fa'ainisinia Laupapa
| Aitema | Fa'amatalaga |
| Fa'ata'ita'iga | DAB7N-40 |
| Igoa Oloa | MCB DPN 6KA |
| Tulaga | IEC60898-1 |
| Poutū | 1P+N (2P) |
| Gagana Gagana | 6kA |
| Fa'atatau i le taimi nei | 6A,16A,20A,25A,32A,40A |
| Malosi Fa'atatau | AC 220/230/240V |
| Fa'atele | 50/60Hz |
| Pi'o Tu'u | B/C |
| Malosi o le Insulation | 500V |
| Malosi'i Malosi | 4kV |
| Faailoga Puipuiga | IP20 |
| Olaga fa'ainisinia | 20,000 taimi |
| Ola Faaeletise | 6,000 taimi |
| Fa'amauina Tosi | 1.5N·m |
| Malosiaga uaea | 1–25mm² |
| Galulue Temp | -25℃ ~ +50℃ |
| Fua | 82.5×73.2×17.8mm |
Otootoga Fua
★ Umi: 82.5mm
★ Maualuluga: 73.2mm
★ Lautele: 17.8mm (lautele 1-module masani)

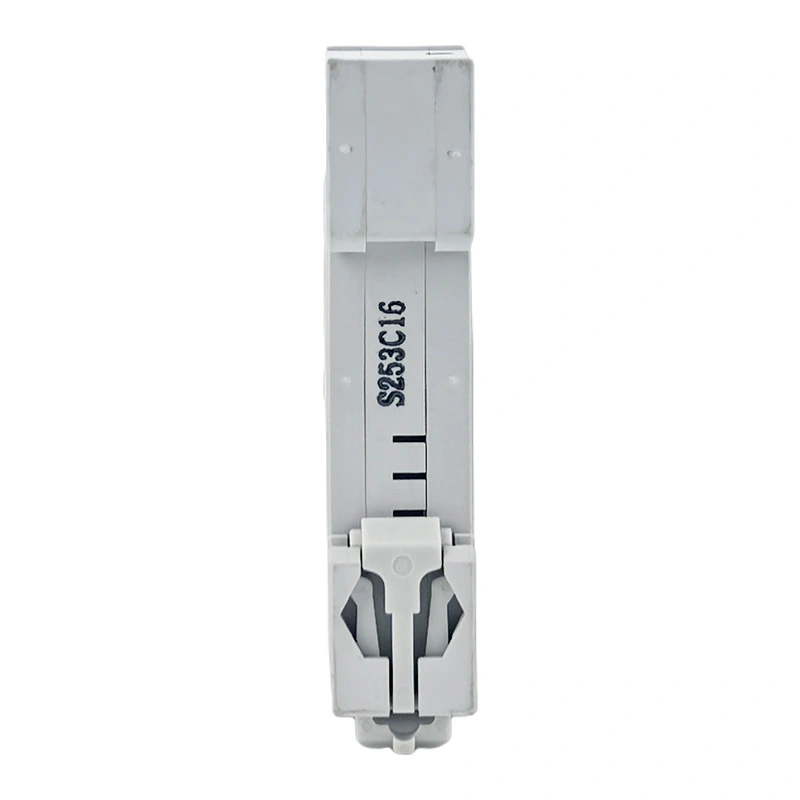

★ Fa'amauina: 35mm DIN rail
★ Uaea: talafeagai mo le 1–25mm² uaea fetuutuunai/malosi
★ mafiafia Busbar: 0.8–2mm
Mea Fa'ata'ita'i Fa'ata'ita'i
★ 1.13I le su'ega e le fa'asa'o (≥1 itula)
★ 1.45I su'ega ta'avale (<1 itula)
★ 2.55I su'ega gaioiga ova
★ Su'ega fa'ato'a maneta (3In/5In mo le pi'o B/C)
★ Dielectric tetee voltage suega
★ Su'ega maualuga o le vevela
★ Su'ega o le malosi e motu ai pupuu (6kA)
★ Su'ega ole ola fa'ainisinia & eletise
★ Suʻega suʻega suʻega maualuga & maualalo

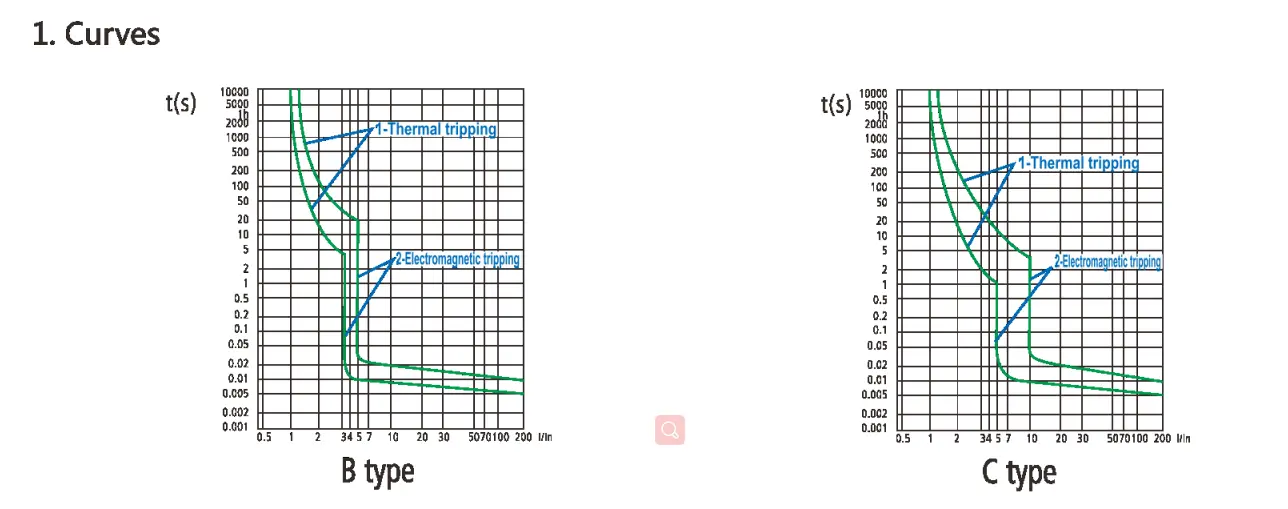

Tu'u Pi'u uiga
IEC 60898-1
Fa'asa'olotoga
Pe a tupu se ta'amilosaga ta'amilosaga, o le pa'u fa'afuase'i e maua e se maneta e iai se u'amea. E tusa ai ma le tulaga IEC60898, o lenei oloa e mafai ona vaevaeina i ni ituaiga se tolu: B, C, ma D.
|
|
Su'ega i le taimi nei | Taimi ta'avale | Talosaga |
| B Pipi | 3ln 5ln |
0.1 |
O le Ituaiga B e na'o le fa'aogaina o uta o lo'o galue: - Fa'avevela eletise-Fa'avevela vai-Uumu eletise. |
| C Pipi | 5I le 10ln |
0.1 |
O le Ituaiga C e talafeagai mo uta masani: -Lamepa -Power Socket -Laiti afi afi |
Fa'asa'oloto
●O le taimi lava e tupu ai le tele o le mamafa i totonu o le matagaluega, o le bimetallic strip o le vaeluaga o le a punou ona o le vevela, ma mafua ai ona motusia le fesoʻotaʻiga ma iʻu ai i le vevela;
●O le tulaga IEC o loʻo faʻamatalaina ai le taimi o le taʻavale mo le tele o galu eseese;
●O le suʻesuʻega faʻataʻitaʻiga vevela siosiomaga e 30 °C.
| Su'ega i le taimi nei | Taimi ta'avale |
| 1.13ln | t z 1h(i ≦ 63A) |
| 1.45ln | t<1h(I ≦ 63A) |
| 2.55ln | 1s<1h<60s(I≤32A)1s |

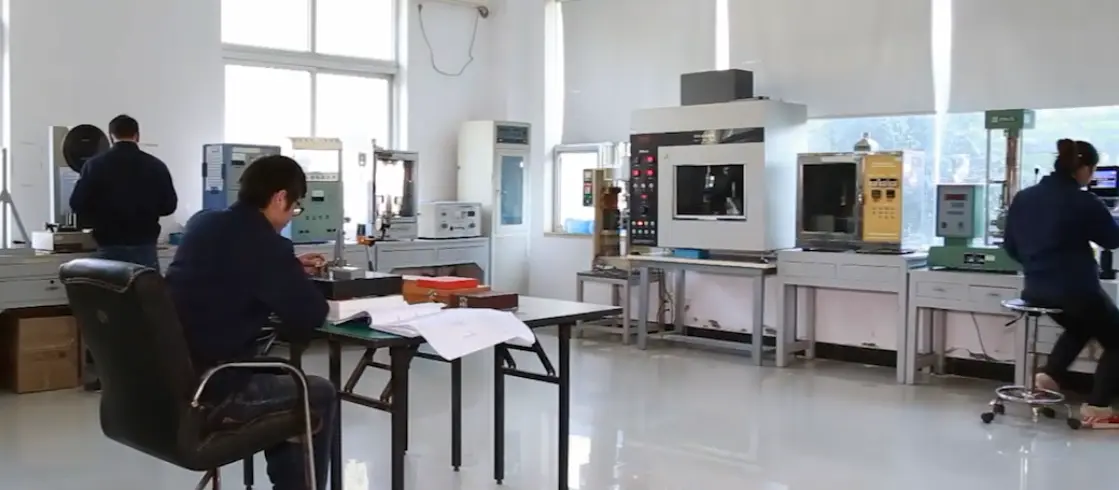

Fa'atonuga Lelei
1. Su'esu'ega o lo'o o'o mai ma fa'amaonia tusipasi
2. Otometi tui tui & fa'ailoga uamea sa'o
3. Fa'aputuga oloa semi-uma & fa'avasegaina
4. 100% suega uiga tripping atoa
5. Tatalia voltage & insulation su'ega faatinoga
6. Suʻega o le matua maualuga ma le maualalo o le vevela
7. Fa'aaliga, fua & su'ega logo
8. Fa'amuta fa'auma & su'esu'ega uta
Fa'aputuina & Va'a
★ katuni auina atu i fafo tulaga ma le ufiufi shockproof
★ Pusa vaega ua afifiina e aloese ai mai le sasa
★ Faʻailoga manino: faʻataʻitaʻiga, taimi nei, pou, aofaʻi, faʻamaonia
★ E talafeagai mo felauaiga i le sami, ea ma le eleele
★ Lagolago OEM afifiina, logo masani ma igoa
Tulaga Manuia a Tagata Fa'atau
CDADA MCB DPN 6KA ua auina atu i fafo i le silia ma le 50 atunuu ma itulagi:
★ Sapalai tele taimi umi mo tufatufa atu Europa ma Asia
★ Poloketi toefaafouga matagaluega a aiga i Sasa'e Tutotonu & Aferika
★ OEM galulue faʻatasi ma faʻailoga eletise faʻavaomalo lauiloa
★ Fa'asoa eletise lagolago mo le au atina'e fanua
★ Poloaiga mautu mai konekarate eletise ma faʻapipiʻi faiga
Aisea e Filifilia ai DADA Eletise?
★ 40+ tausaga o tomai faʻapolofesa i le vaeluaga R&D ma gaosiga
★ 90% vaega autu gaosia i totonu o le fale, pulea lelei mautu
★ ISO9001 faʻamaonia, tausisia atoatoa tulaga faʻavaomalo
★ Faʻamaonia atoatoa: CE, CB, CCC, ma isi.
★ Tele gaosiga gafatia, tuʻuina atu vave mo faʻatonuga tele
★ lagolago faʻapitoa faʻapolofesa ma le maeʻa faʻatau atu auaunaga
★ Talia OEM & ODM customization e faʻafetaui manaoga maketi
★ Faiga fa'akomepiuta fa'alelalolagi, saogalēmū ma le taimi e tu'uina atu ai
